diesel generator Cummins
Cummins gensets
generating sets

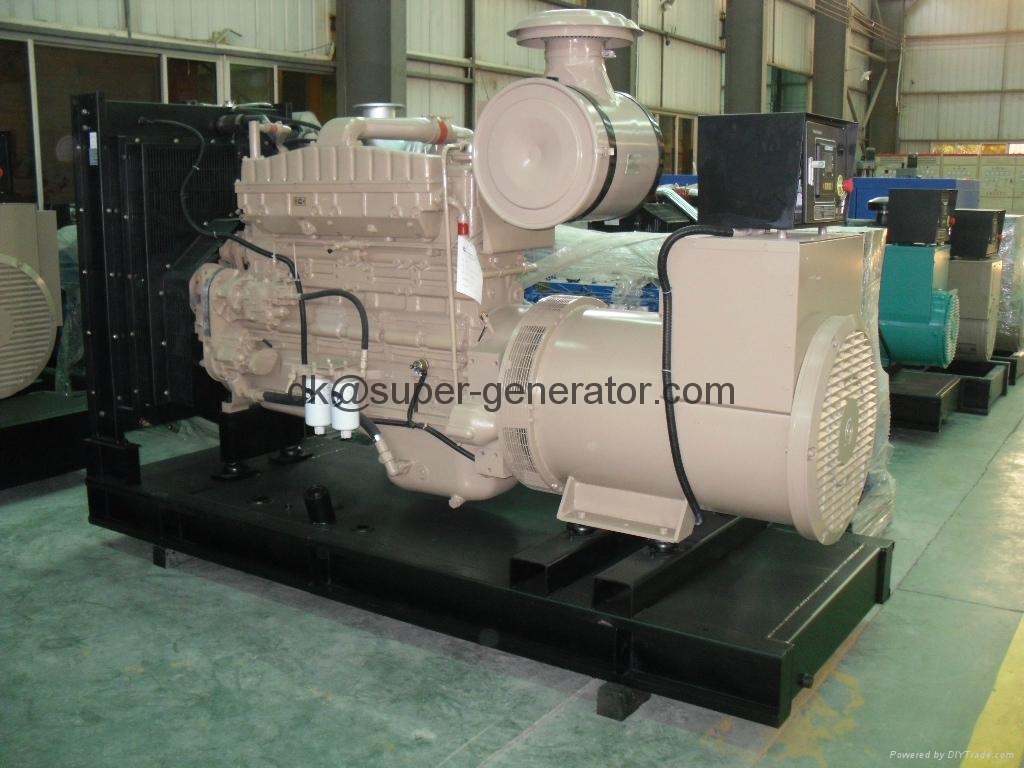

162KVA generating sets 6BTAA5.9-G2-60Hz
use:Land
Frequency Hz:60Hz
DK Model::DK118
Product Name:162KVA generating sets -60Hz
Model:6BTAA5.9-G2
Prime Power(kw/Kva):118/148
Standby Power(kw/Kva):130/162
Rated Current A:198
Open type Dimension(L*W*H) mm:2490*830*1620
Open type Weight Kg::1450
Manufacturer:Cummins
Model:6BTAA5.9-G2
Exhaust：5.9
Continuous/Standby（KW):120/132
Aspiration & Cooling:Turbo/Aftercooled
Cylinders Capacity Lt :6
Cylinders & Build :In line
Speed RPM :1800
Bore & Stroke mm×mm :102×120
Compression Ratio:17.5
Fuel consumption g/kw.h :210
Fuel consumption（L/h）:32
Lub-oil Capacity Litre ：16.4
max oil temperature （℃）：121
Coolant Capacity Litre ：25.1
Max intake resistance（kPa)：6.2
Max exhaust back pressure：10
Flue gas temperature （℃）：510
Thermostat（℃）：82-93
Manufacturer：
Leroy Somer Model：LSA44.2 S75
Stamford Model ：UCI274E
Output Voltage V :：480/277
Steady Voltage Adjusting Range:±1%
Insulation：H
Protection：IP23
Ventilation cooling capacity（1/s)：216
Rated capacity（V)：24
