Technical Data
|
|
Genset Model
|
DK-P7.2
|
|
Prime Power
|
9KVA/7.2KW
|
|
Standby Power
|
10KVA/8KW
|
|
Rated Voltage
|
400/230V
|
|
Frequency
|
50Hz
|
|
Radiator
|
50 centigrade
|
|
Charge Alternator
|
12V
|
|
Dimension(L*W*H) (mm)
|
1570*730*1300
|
|
Net Weight (kg)
|
780
|
|
Diesel Engine
|
|
Brand
|
Perkins
|
|
Model
|
403D-11G
|
|
Governor Type
|
Electrical
|
|
Rotating Speed
|
1500 rpm
|
|
Engine Cooling Method
|
Water-cooled
|
|
Displacement(L)
|
1.131
|
|
Bore×Stroke(mm)
|
77×81
|
|
Alternator
|
|
Brand
|
Stamford
|
|
Model
|
PI044E
|
|
Power Factor((COS Phi)
|
0.8
|
|
Excite Type
|
Brushless SHUNT
|
|
Connecting Type
|
3 Phase & 4 Wires
|
|
Insulation Degree
|
H/H
|
|
Enclosure Degree
|
IP22//23
|
|
The components of the genset
|
|
1.Diesel Engine 2.Alternator 3.DSE702AS Control Panel
|
|
|
|
|
| Payment Terms︰ | 30% T/T downpayment,70% banlance |
|
|

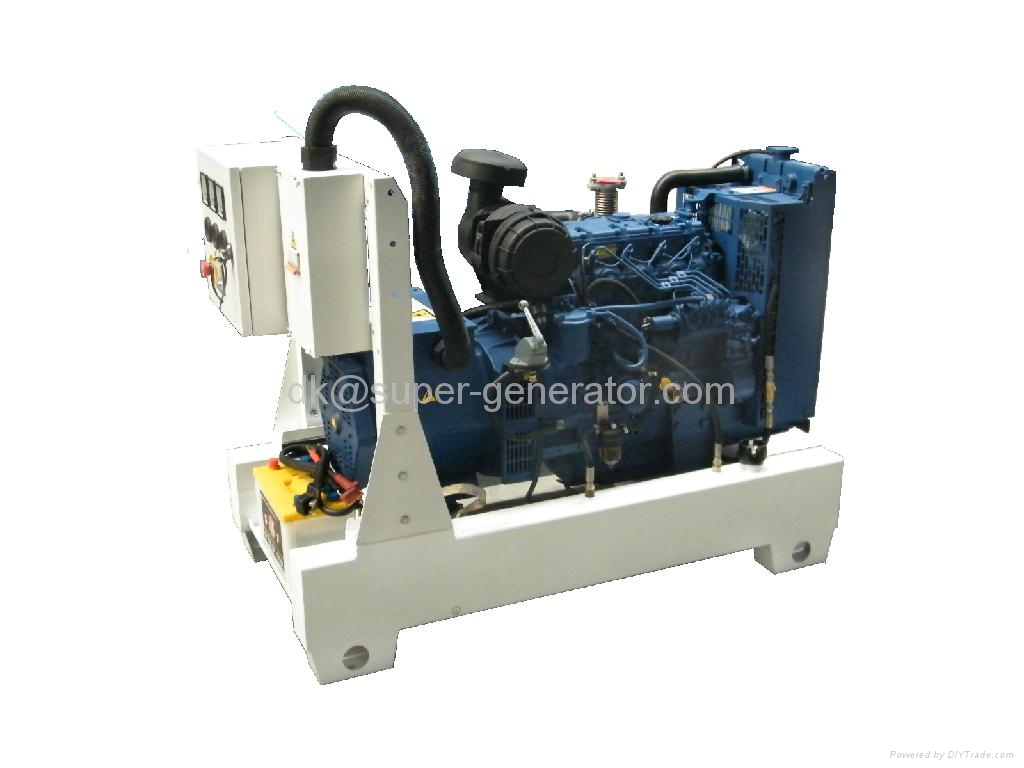

Product Image
|
