Cummins gensets
generating sets

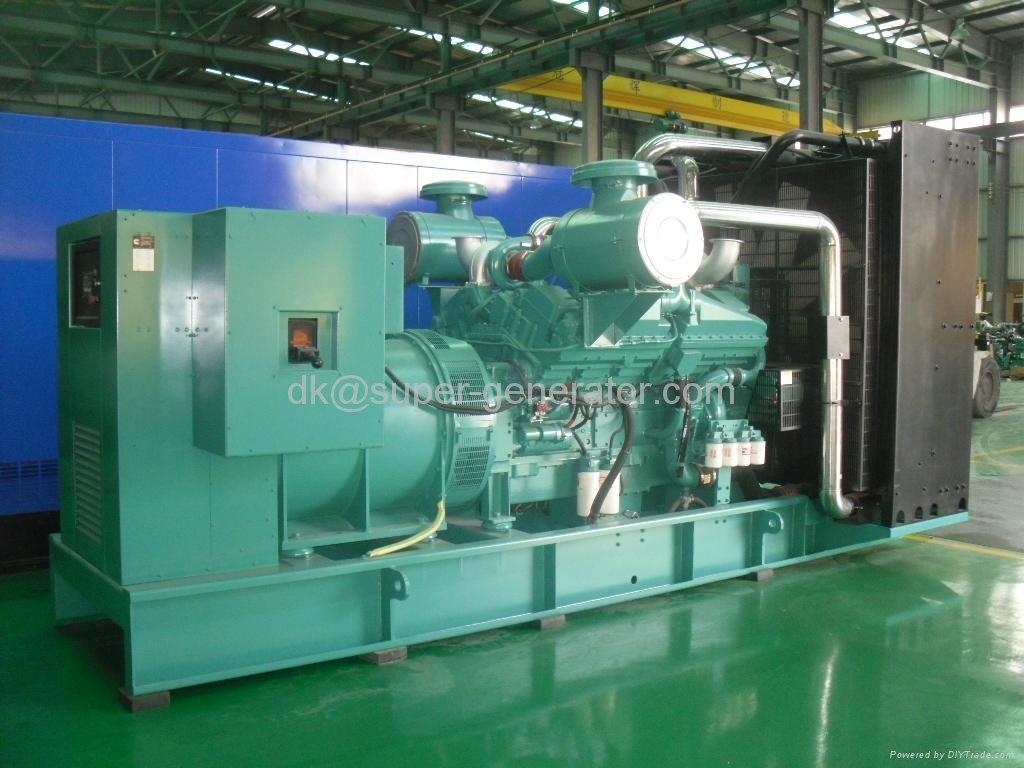

1375kva Standby use only generating sets KTA38-G9-50Hz
use:Land
Frequency Hz:50Hz
DK Model::KC1100
Product Name:1375kva/1100kw generating sets -50Hz
Model:KTA38-G9A
Prime Power(kw/Kva):N/A
Standby Power(kw/Kva):1375KVA/1100KW
Rated Current A:1680
Open type Dimension(L*W*H) mm:5050*2100*2350
Open type Weight Kg::9743
Manufacturer:Cummins
Model:KTA38-G9A
Exhaust：38
Continuous/Standby（KW):NO/1195
Aspiration & Cooling:Turbo/Aftercooled
Cylinders Capacity Lt :12
Cylinders & Build :V60
Speed RPM :1500
Bore & Stroke mm×mm :159×159
Compression Ratio:13.9
Governor :EFC
Fuel consumption g/kw.h :215.9
Fuel consumption（L/h）:201
Lub-oil Capacity Litre ：135
max oil temperature （℃）：121
Coolant Capacity Litre ：194
Max intake resistance（kPa)：6.2
Max exhaust back pressure：10
Flue gas temperature （℃）：528
Thermostat（℃）：82-93
Stamford alternator :HCI634G
Output Voltage V :：400/230
Steady Voltage Adjusting Range:±1%
Insulation：H
Protection：IP22/23
Ventilation cooling capacity（1/s)：1035
Rated capacity（V)：24
