Cummins genset
generating sets

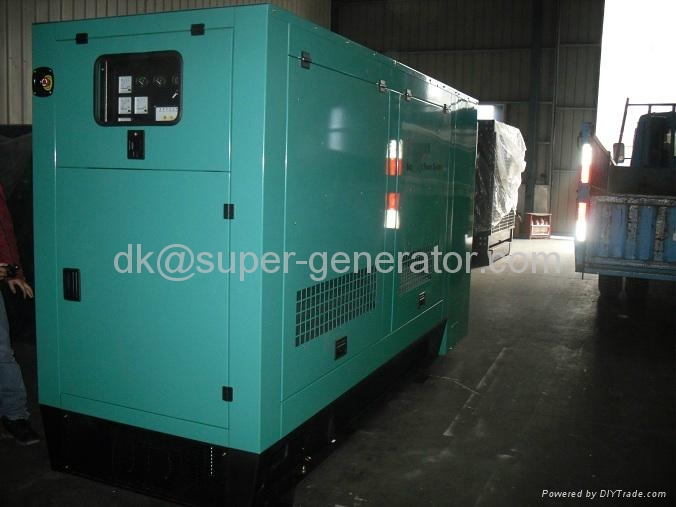

750KVA generating sets KTA38-G2-50Hz
use:Land
Frequency Hz:50Hz
YK Model::kms750PV
Product Name:750KVA generating sets -50Hz
Model:KTA38-G2
Prime Power(kw/Kva):600/750
Standby Power(kw/Kva):670/838
Rated Current A:1080
Open type Dimension(L*W*H) mm:4500*1950*2450
Open type Weight Kg::7800
Manufacturer:Cummins
Model:KTA38-G2
Exhaust：38
Continuous/Standby（KW):664/731
Aspiration & Cooling:Turbo/Aftercooled
Cylinders Capacity Lt :12
Cylinders & Build :V60
Speed RPM :1500
Bore & Stroke mm×mm :159×159
Compression Ratio:14.5
Governor :EFC
Fuel consumption g/kw.h :213
Fuel consumption（L/h）:154
Lub-oil Capacity Litre ：135
max oil temperature （℃）：121
Coolant Capacity Litre ：194
Max intake resistance（kPa)：6.2
Max exhaust back pressure：10
Flue gas temperature （℃）：528
Thermostat（℃）：82-93
Stamford LVI63B
Output Voltage V :：400/230
Steady Voltage Adjusting Range:±1%
Insulation：H
Protection：IP22
Ventilation cooling capacity（1/s)：1035
Rated capacity（V)：24
