Genset Model
|
DK-P7.2
|
|
GENSETS
|
Rated power(Kw/kva)
|
7.2/9
|
|
Frequency(Hz)
|
50
|
|
Pahse
|
3
|
|
Voltage(V)
|
230/400,240/415V
|
|
Current(A)
|
12.8
|
|
Fuel capacity(L)
|
56
|
|
Fuel consumption(L/Hour)
|
2.5
|
|
Dimension (mm)
|
L
|
1650
|
|
W
|
780
|
|
H
|
950
|
|
Weight(kg)
|
560
|
|
Noice level for silent type (Db/7m)
|
65
|
|
ENGINE
|
Model
|
403D-11G
|
|
Prime power(kw)
|
9.5
|
|
Cylinders
|
3 in line
|
|
Bore×stroke(mm)
|
77x81
|
|
Intake Method
|
Natural intake
|
|
Displacement(L)
|
1.1
|
|
Speed governing
|
Mechanical governor
|
|
Cooling starting method
|
Water cooling
|
|
ALTERNATOR
|
Model
|
PT044E Stamford
|
|
Rated power(kw/kva)
|
8.8/11
|
|
Insulation class
|
H
|
|
Alternator enclosure
|
IP23
|
|
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.
|
|
|
|
|
| Payment Terms︰ | 30% T/T down payment,balance 70% before shipment |
|
|

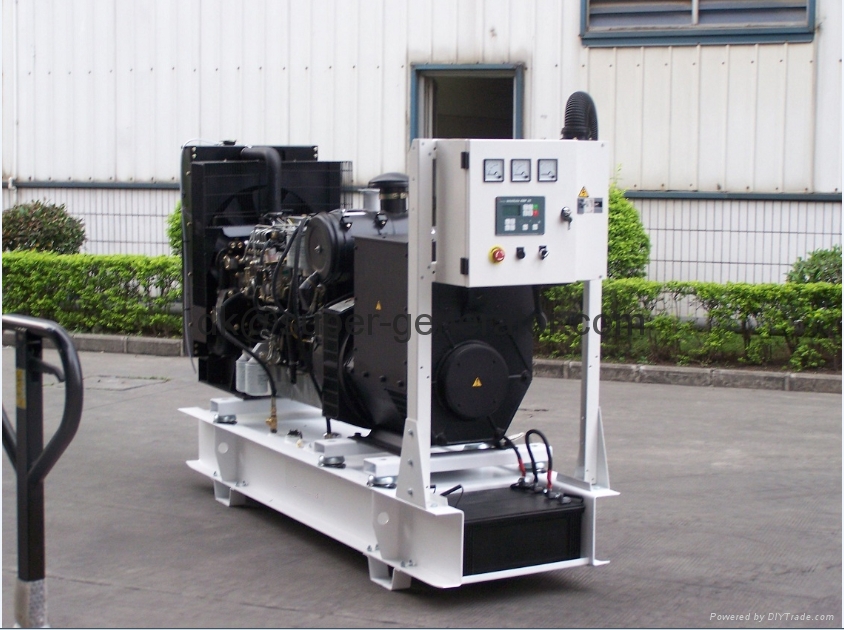

Product Image
|
