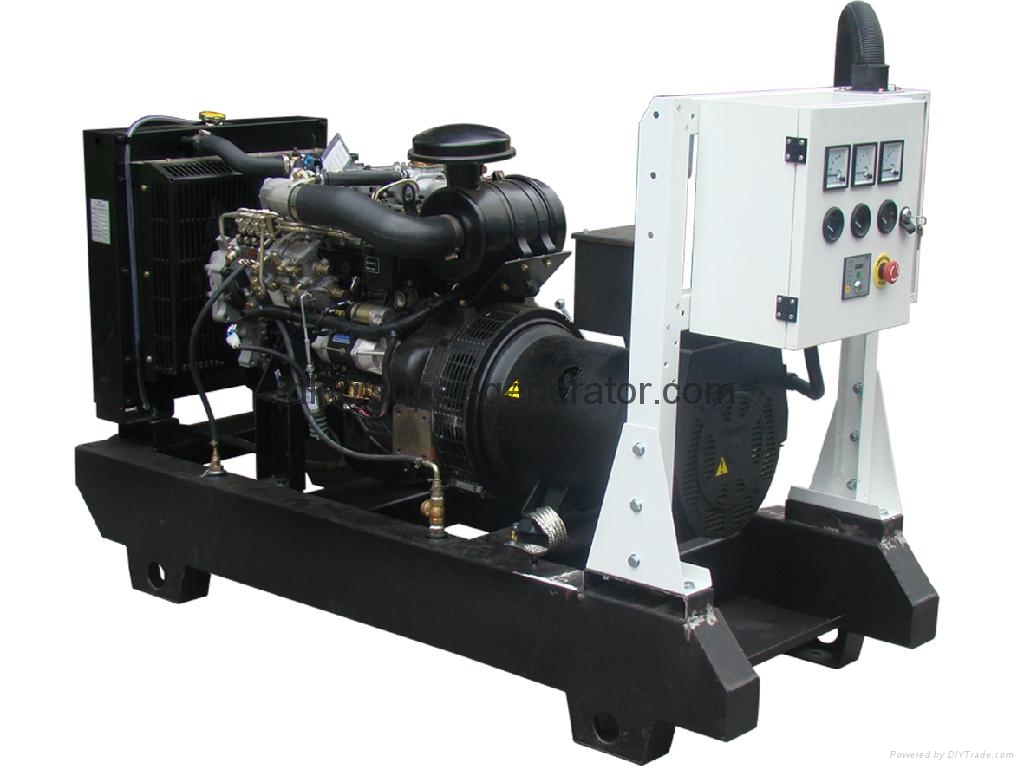

isuzu 20kw 22kw open and super silent generator-50hz

  • isuzu 20kw 22kw open and super silent generator-50hz
  • isuzu 20kw 22kw open and super silent generator-50hz
Model No.︰IS22 /IS20
Brand Name︰isuzu generator
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 350 Related Items
Prev147148149150151Next

Product Description

Genset Model

IS20/IS22

SET

Rated power(Kw/kva)

20/25

Frequency(Hz)

50

Phase

3

Voltage(V)

230/400

Current(A)

36

Fuel capacity(L)

82

Fuel consumption(L/Hour)



5.8

Dimension (mm)

L

1880

W

800

H

1080

Weight(kg)

770

Noise level for silent type (Db/7m)

65

ENGINE

Model

4JB1

Prime power(kw/kva)

24/30

Cylinders

4

Bore×stroke(mm)

93×102

Intake Method

Natural intake

Displacement(L)

2.771

Speed governing

Mechanical governor

Cooling starting method

Water cooling

ALTERNATOR

Model

STAMFORD, FARADAY

Rated power(kw/kva)

22/27.5

Insulation class

H

Alternator enclosure

IP23

THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.

Payment Terms︰30% T/T downpayment, banlance 70% before shipment
