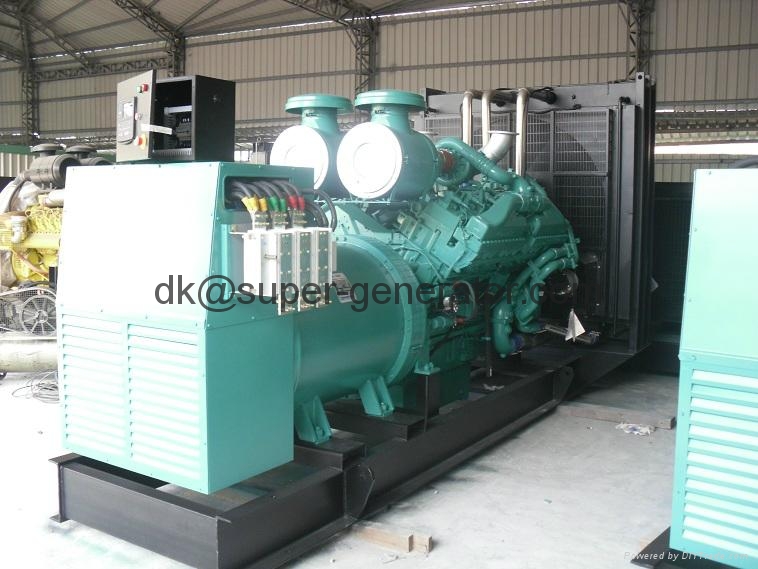

Generator set
|
Open type
|
Silent type
|
|
Model
|
DKC1340
|
FCG1340S
|
|
Engine model
|
KTA50-GS8
|
|
Alternator
|
Engga,Marathon,Stamford
|
|
Prime power (kva/kw)
|
1406kva/1125kw
|
|
Standby power ( kva/kw)
|
1675kva/1340kw
|
|
Output voltage
|
415/240 or 400/230 or 380/220 v
|
|
Power factor
|
COSΦ=0.8(lagging)
|
|
Phase/wires
|
3 phase 4 wires
|
|
Fuel consumption
@ 100%prime power
|
309 L/h @ 100% prime power
|
|
Rated speed (r/min.)
|
1500R.P.M ,50HZ
|
|
Dimension(L*W*H)
|
5100*2150*2450mm
|
Canopy:40HQ
|
|
Weigh (kgs)
|
11400kgs
|
14600kgs
|
|
Noise level (at 7m)
|
108dba
|
80dba
|
|
Technical parameters of Engine:
|
|
Engine model & Origial
|
Cummins India KTA50-GS8
|
|
Engine power prime
|
1287kw
|
|
Cylinders
|
16/V type,Four-stroke, turbocharged
|
|
Bore*stroke(mm)
|
159×159
|
|
Compression ratio
|
14.9:1
|
|
displacement
|
50.3L
|
|
Aspiration
|
Turbocharged and low temperature aftercooled
|
|
type of cooling
|
Close type cooling With fan & radiator
|
|
Type of Governor
|
Electronic
|
|
Filters system
|
Easy replacement type ,whole lubricating oil, Fuel filter and air filter, air filter for the paper core type.
|
|
Muffler and exhaust pipe
|
By using of industrial high performance muffler with flexible bellows flexible connected exhaust pipe , the generators can be reduced 15 ~ 20dBA Noise
|
|
Start type
|
24V DC start, start motor comes with built-in battery
|
|
Technical parameters of Engine:
|
|
Alternator Brand
|
Engga
|
Marathon
|
Stamford
|
|
Alternator Model
|
EG450S-1200N
|
MX-1240-4
|
PI734C
|
|
KW POWER
|
1200 KW,50hz 1500 RPM
|
|
excited type
|
Brushless, self-excited(with auto voltage stability)
|
|
Grade for rotor, stator loop.
|
H GRADE
|
|
Protection Grade
|
IP21/IP22
|
|
Power quality
|
G3 Grade,GB/T2820
|
|
Rated Voltage
|
415/240 or 400/230 or 380/220 v
|
|
The Voltage Fluctuation
|
≤0.5%
|
|
Instantaneous Regulation of Voltage
|
+20%~-15%
|
|
Technical parameters of Control Panel: digital and AMF
|
|
Details
|
Brand: DEEPSEA UK Model: DSE7320
Function:
·The controller has the following protection functions, such as
Emergency halting
Low accumulator alarming
Over speed protecting
Low oil voltage protecting
3 failure start alarming
Start motor take-off
Temperas halting protection
|
Warranty: one year or 1,000 operation hours, which reach first.
